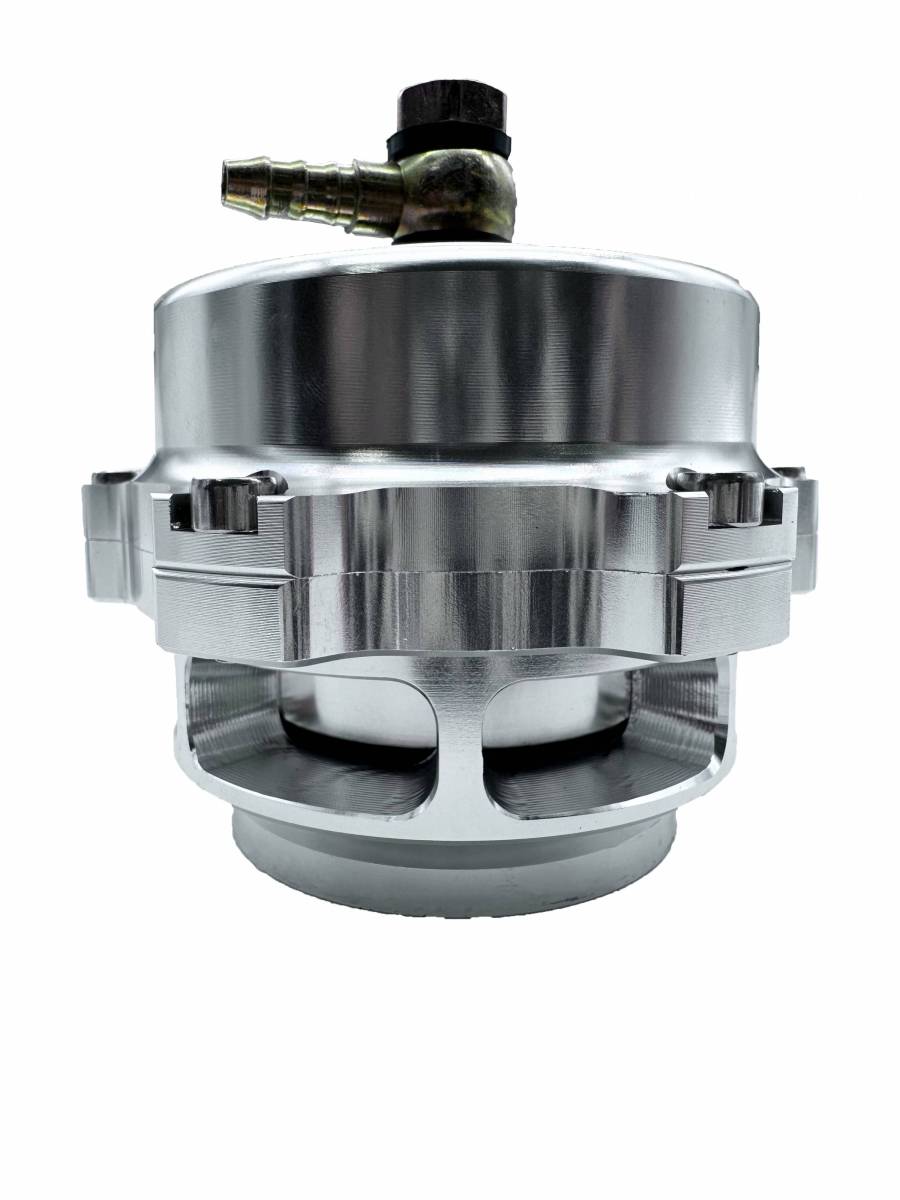

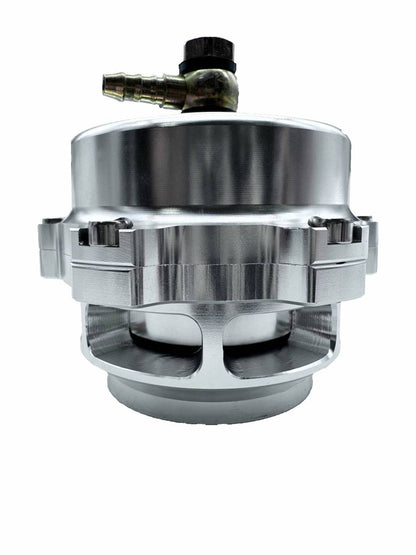

Granatelli 50mm Adjustable Turbo Blow-Off Valve with V-Band – 540200
Granatelli 50mm Adjustable Turbo Blow-Off Valve with V-Band – 540200
50mm Blow Off Valve with Adjustable Springs and V-Band Mount
THAT “PSHHH” ISN’T THE IMPORTANT PART. GETTING THE PRESSURE OUT QUICKLY IS.
The Granatelli 540200 50mm Blow-Off Valve provides fast boost-pressure relief for street, street/strip and custom turbocharger systems.
Its billet construction, V-band mounting and interchangeable 6 PSI and 15 PSI springs make this an adjustable performance BOV for builders who need a strong, straightforward solution for controlling pressure when the throttle closes.
|
50MM Turbo BOV |
0.340" Valve Lift |
6 / 15 PSI Included Springs |
What This Blow-Off Valve Does
When the throttle blade closes under boost, compressed air can back up against the turbocharger compressor. The 540200 releases that trapped charge pressure quickly, helping reduce compressor surge and creating a cleaner transition between throttle events.
Good Choice For
✓ Street turbo cars • ✓ Custom intercooler piping • ✓ Street/strip turbo systems • ✓ V-band BOV installations • ✓ Adjustable spring setups
Product Specifications
| Part Number | 540200 |
| Product Type | Turbo Blow-Off Valve |
| Valve Size | 50mm |
| Valve Lift | 0.340" |
| Construction | Billet Aluminum |
| Springs Included | 6 PSI & 15 PSI |
| Included Hardware | V-Band & Weld Flange |
| Discharge | Vents to atmosphere (atmospheric) |
Key Features
- 50mm valve with 0.340" valve lift for fast pressure release
- Billet aluminum construction

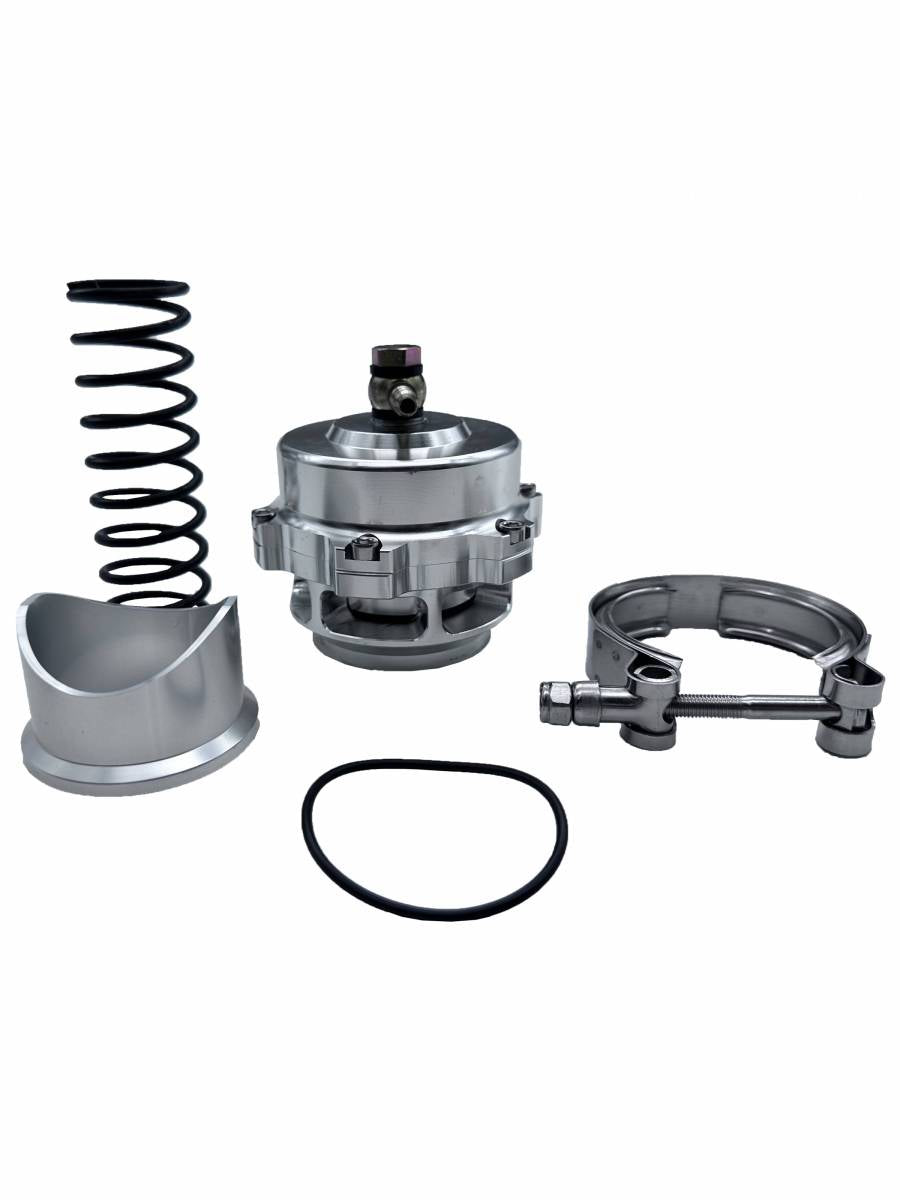

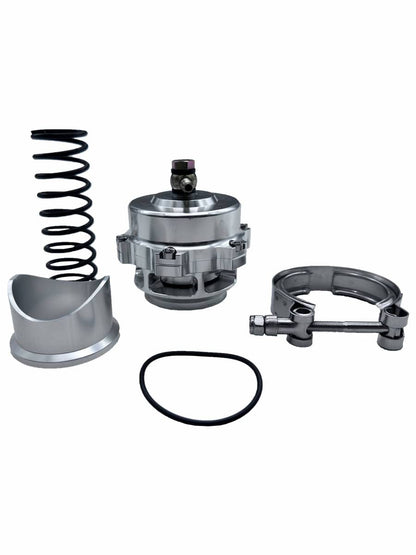

- Two interchangeable springs included: 6 psi and 15 psi
- V-band mount with weld flange included for custom charge piping
- Vents to atmosphere
Fitment & Installation
The 540200 is a universal 50mm blow off valve for custom and aftermarket turbo systems. Weld the included flange to your charge pipe and clamp the valve on with the included V-band. Because it vents to atmosphere, check with your tuner first on MAF-based engine management. Need help choosing? Compare all four Granatelli BOVs in our blow off valve collection.
50mm Blow Off Valve FAQ
What does a 50mm blow off valve do?
When you lift off the throttle under boost, the pressurized air in the charge pipe has nowhere to go. The blow off valve opens and releases it so it doesn't surge back through the turbo's compressor.
Which spring should I use, 6 psi or 15 psi?
Both springs come in the box, so you can change how firmly the valve stays closed. Not sure which fits your boost level? Call or email us with your setup.
Is this a vent-to-atmosphere BOV?
Yes. It releases air to the atmosphere. On MAF-based engine management, check with your tuner before installing.
540200 vs. 540201 vs. Viper 540198: which 50mm BOV?
The 540200 is the best-value 50mm BOV for most turbo street builds. The 540201 Ultra High Flow keeps the 50mm size with more relief flow, and the Viper 540198 adds adjustable spring preload.
Does a blow off valve add horsepower?
No. A BOV protects the turbo and keeps throttle transitions clean; it doesn't make power by itself.
Do I need a wastegate too?
For most turbo builds, yes. The wastegate controls boost on the exhaust side and the BOV handles the intake side. Read Wastegate vs. Blow-Off Valve.
Why Choose Granatelli Motor Sports?
Granatelli Motor Sports has built American performance parts since 1949. Our turbo blow off valves are designed, engineered and tested at our headquarters in Oxnard, California.
